The international IEC 62386 standard

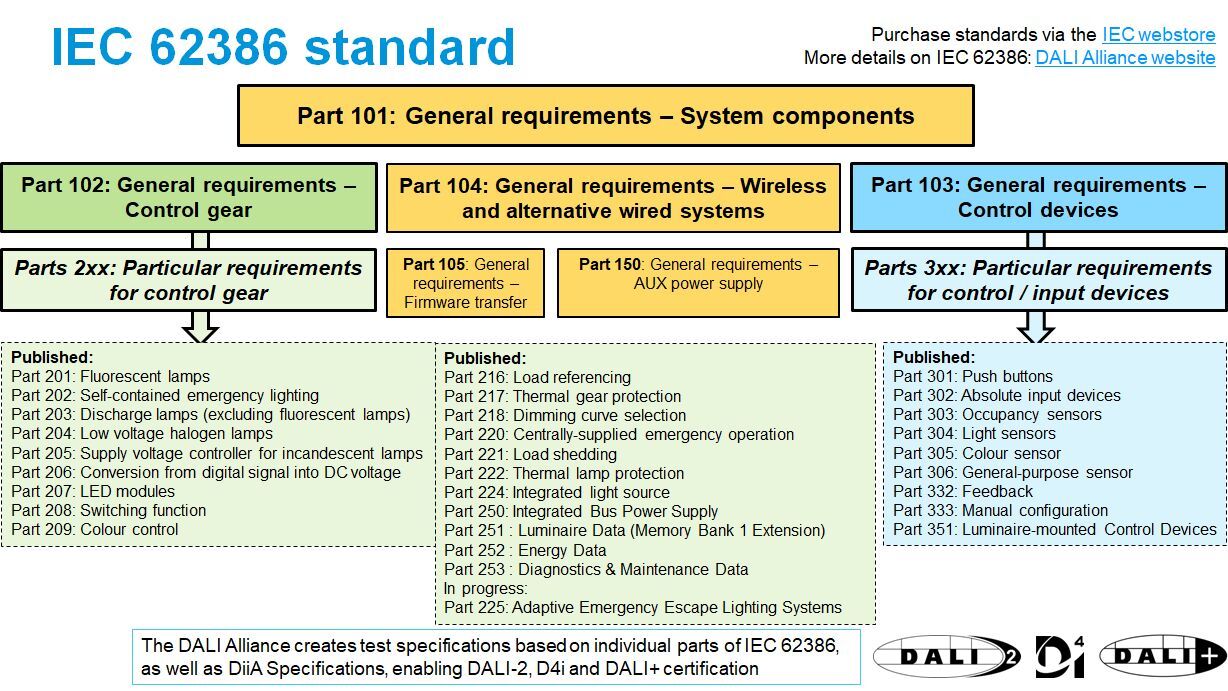

Overview of IEC 62386

DiiA specifications

Status of different Parts of IEC 62386

IEC 62386, the international standard for the Digital Addressable Lighting Interface, is published in multiple Parts by the International Electrotechnical Commission (IEC). Published Parts of IEC 62386 can be purchased from the IEC website.

The table below shows the status of different Parts of IEC 62386. Parts labelled as "in progress" are being developed by the IEC working group (WG11 of TC34) that is responsible for writing and maintaining IEC 62386. DiiA is an active participant in TC34 / WG11.

DALI-2 and the DALI Alliance

DALI-2 is the certification program operated by the DALI Alliance and based on the latest version of the DALI protocol. All new Parts of IEC 62386 are aligned with DALI-2. Some (but not all) older Parts will be updated to align with DALI-2.

The DALI Alliance develops DALI-2 Test Procedures, which enable companies to show compliance of their products with different Parts of DALI-2. Test Procedures are also developed from DiiA specifications.

What's next? Creation of DALI-2 Test Procedures relies on input from DiiA members, and is influenced by member priorities and market demand. Our Timeline shows the planned priority for further DALI-2 certification development. >> Timeline

The following Table was updated in October 2021.

General requirements
IEC 62386 part	Description	Status of published standard	Available for DALI version-1 testing?	Available for DALI-2 certification?
101	System	DALI-2 aligned
102	Control gear	DALI-2 aligned
103	Control devices	DALI-2 aligned	No
104	Wireless and alternative wired system	DALI-2 aligned	No	n/a DALI+ certification will apply
105	Firmware updates	DALI-2 aligned	No
Parts 201-209: Specific requirements for control gear Parts 201-209 were included in DALI version-1. For some Parts, the latest standards are aligned with DALI-2. For other Parts, DiiA is adapting DALI version-1 tests for DALI-2.
IEC 62386 part	Description	Status of published standard	Available for DALI version-1 testing?	Available for DALI-2 certification?	Device type
201	Fluorescent lamps	DALI-2 aligned		Not planned at present	DT0
202	Self-contained emergency	DALI version-1 Update in progress			DT1
203	HID lamps	DALI version-1		Not planned at present	DT2
204	Low voltage halogen lamps	DALI version-1		Not planned at present	DT3
205	Incandescent lamp dimmer	DALI version-1			DT4
206	Conversion to DC (0/1-10 V)	DALI version-1			DT5
207	LED modules	DALI-2 aligned			DT6
208	Switching	DALI version-1			DT7
209	Colour control	DALI version-1	Not available		DT8
More control-gear functions (Parts 2xx)
Parts 3xx - Specific requirements for control / input devices All Parts 3xx are aligned with DALI-2. These Parts were not included in DALI version-1.
IEC 62386 part	Description	Status of published standard	Available for DALI version-1 testing?	Available for DALI-2 certification?
301	Push buttons	DALI-2 aligned	n/a
302	Absolute input devices	DALI-2 aligned	n/a
303	Occupancy sensors	DALI-2 aligned	n/a
304	Light sensors	DALI-2 aligned	n/a
305	Colour sensors	DALI-2 aligned	n/a	-
306	General-purpose sensors	DALI-2 aligned	n/a	-
332	Input control devices - Feedback	DALI-2 aligned	n/a	In progress
333	Manual Configuration	DALI-2 aligned	n/a	Not planned at present
Parts 2xx - Control gear functions All Parts below are aligned with DALI-2. These Parts were not included in DALI version-1.
IEC 62386 part	Description	Status of published standard	Available for DALI version-1 testing?	Available for DALI-2 certification?	Device type
216	Load referencing	DALI-2 aligned	n/a	-	DT15
217	Thermal gear protection	DALI-2 aligned	n/a	-	DT16
218	Dimming curve selection	DALI-2 aligned	n/a	-	DT17
220	Centrally-supplied DC emergency operation	DALI-2 aligned	n/a	-	DT19
221	Load Shedding	DALI-2 aligned	n/a	-	DT20
222	Thermal lamp protection	DALI-2 aligned	n/a	-	DT21
224	Integrated light source	DALI-2 aligned	n/a		DT23

DiiA writes new specifications that define additional DALI features and functions, building on the IEC 62386 international standard.

DiiA specifications are freely available to both members and non-members of DiiA. >> Download here

DiiA intends to transfer its specifications to IEC, for publication as new Parts of IEC 62386.

DALI Part	Description	Applies to	Status of specification	Available for DALI-2 certification?	Available for D4i certification?	Device type
150	AUX Power Supply	AUX supplies	Published			-
250	Integrated Bus Power Supply	LED drivers	Published			DT49
251	Luminaire Data (Memory Bank 1 Extension)	LED drivers	Published			DT50
252	Energy Data	LED drivers	Published			DT51
253	Diagnostics & Maintenance Data	LED drivers	Published			DT52
351	Luminaire-mounted Control Devices	Control devices	Published			-
104	Changes & Additions	All	Published	n/a DALI+ certification will apply	n/a	-
341	Bluetooth Mesh to DALI Gateway	Control devices	Published	In progress	n/a	-
342	Zigbee to DALI Gateway	Control devices	Published	In progress	n/a	-
